Embossed LED Membrane Switch With Tactile Indication For Enhanced User Interface And Experience
An embossed LED membrane switch with tactile indication enhances the user interface and experience through a combination of visual, tactile, and ergonomic benefits. Here's a breakdown of the key aspects:
1. Embossing for Enhanced Tactile Feedback and Usability
- Tactile Confirmation: Embossing raises the key area on the membrane switch, providing a physical sign to the user, signaling a button press even before it's activated [1][2]. This tactile feedback is crucial in scenarios where visual confirmation is difficult [2][3].
- Improved Accuracy: Embossed keys help users accurately locate the "sweet spot" for key activation, reducing missed attempts and increasing user productivity [4].
- Low-Light Accessibility: Embossing makes it easier to locate keys in low-light conditions [4].
- Types of Embossing: Common types include full key embossing, LED embossing, rim embossing, and Braille embossing for visually impaired users [4]. Dome embossing offers feedback even for non-tactile switches [5].
2. LED Integration for Visual Indication
- Visual Status Indicators: LEDs turn the switch into a visual status indicator. Different colors can be used to show different states (e.g., green for normal, red for problem) [6].
- Improved Visibility: LEDs light up the buttons, which helps in dark environments [6].
- Design Flexibility: LEDs can be customized for different products, offering a nice aesthetic [6].
3. Advantages of Embossed Membrane Switches
- Enhanced Durability: Embossing can make the switches more resistant to wear and tear, increasing their lifespan [7].
- Customizable Design: The graphic overlay can be tailored to meet specific needs, including logos, branding, and button shapes [7].
- Dust and Moisture Resistance: The sealed design makes them resistant to environmental factors [3][7].
- Aesthetic Appeal: Embossing enhances the graphic overlay, creating a three-dimensional look [2][4].
- Improved Recognition Speed: Embossing helps users determine the range of the keypad and improves operation speed [8].
4. Embossing Techniques and Considerations
- Heat and Pressure: Embossing is created by applying heat and pressure to the reverse surface of the overlay [4][8].
- Material Considerations: Polyester is highly versatile for embossing and chemical resistance, while polycarbonate offers a wider range of surface finishes and is more cost-effective [3][9].
- Design Constraints: Embossing height should not exceed 1.5 times the material thickness [8]. Flat embossing should be at least 3mm or 5mm from the edge [8].
5. Applications
- Embossed LED membrane switches are used in various industries, including consumer electronics, medical devices, industrial machinery, and automotive [3][6]. Specific examples include:
- Medical equipment (infusion pumps, diagnostic equipment) [7]
- Oil rig control panels [6]
- Factory machines [6]
- Automotive [6]
6. Types of Embossing
- Full Emboss: The entire surface of a specified area is embossed [4].
- Rim Emboss: Only the outline or border of a key or shape is embossed [4][5].
- Pillow Emboss: Creates a raised, pillow-like shape on the key [1][2].
- Dome Emboss: Pushes up the surface into a metal dome shape [2].
- LED Emboss: Embossing the area immediately above the LED to enhance the aesthetic [4].
- Braille Emboss: For vision-impaired users [1][4].
Membrane Switch specification:
1)Material---for front or face overlay
Polyester
1.Highly versatile for embossing 2.Highly resistant to chemicals
3.Better durability 4.For internal and external use
Polycarbonate
1.Wide range of surface finishes and thicknesses
2.More cost-effective 3.For internal and external use
2) Embossing--rim embossing pillow embossing dim embpssing
Graphic overlays can be embossed in order to insert domes (tactile), leave space for mechanical keys and provide tactile indications Pedestal embossing
3)Windows ----for display function
1. print colors windows
2.transparent finishes windows
4)Keys/buttons
Tactile keys---with metal dome or poly dome
Non-tactile--silver printing spot
5) Embeded LEDs-
miniature LED, LED colors:white, yellow, orange, green, red, etc.
6)Cable
is an extension of the printed circuit and is used to communicate with your device
7)Types of connector
1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector
Membrane switch Performance Index:
| Environmentl | Operating Temperature | -40°C to +80°C (-40°to 176°F) | | | Storage Temperature | -40°C to +85°C (-40°to 185°F) | | | Humidity | 40°C, 90% to 95% for 240 hours | | | Vibration | 20G's max. | | Mechanical | Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) | | | | Tactile 150g to 400g (6oz to 14oz) | | | Switch Stroke | Non-tactile 0.1 to 0.5mm | | | Life Expectancy | Tactile 0.6 to 1.5mm | | | | Non-tactile >5 million actuations | | | | Tactile >1 million actuations | | Electrical | Operating Voltage | 35 volts maximum | | | Operating Current | 10 micro amps to 100 milliamps, resistive | | | Operating Power | 1 watt maximum | | | Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | | | Insulation Resistance | 100M ohms at 100V DC | | | Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | | | Contact Bounce | ≤ 5 milliseconds | |
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply

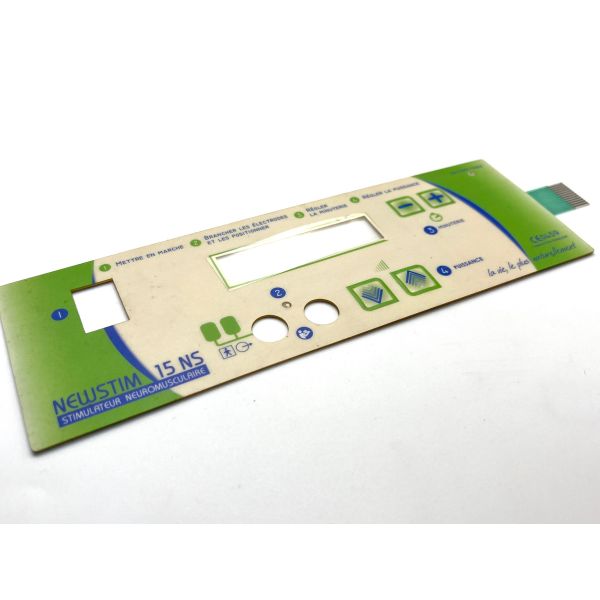

More Photos show :
